HomeDUSTER 20mm Dust Collector to capture dust when drilling

Product Information

HomeDUSTER 20mm Dust Collector to capture dust when drilling

• 90' Mirror Guide / Right Angle
• Drilling Diametre up to 20mm
• Reliable vacuum fixaction to hold it to the surface you are working on.

The HomeDUSTER Dust Collector device is convenient and necessary in for dust collection by vacuum cleaner when drilling holes with diamond drill bits and carbide drills.
The durable and lightweight body of the nozzle is only 60 grams and the rubber seal for vacuum fixation is easily attached to any surface using a conventional household vacuum cleaner. The mirror reflecting ring helps to position the drill at an even angle of 90 degrees.

The mounting assembly of the dust collector is made of elastic rubber and is designed for the vacuum cleaner nozzle from 32 to 39 mm.
Intended use,

The device is developed for sludge removal from the drilling zone on vertical and horizontal concrete and brick surfaces.

Max. Driling diamtre is 20mm

Working instructions,

Remove the protective film from the mirror surface

Connect the vacuum cleaner to the exhaust boot.

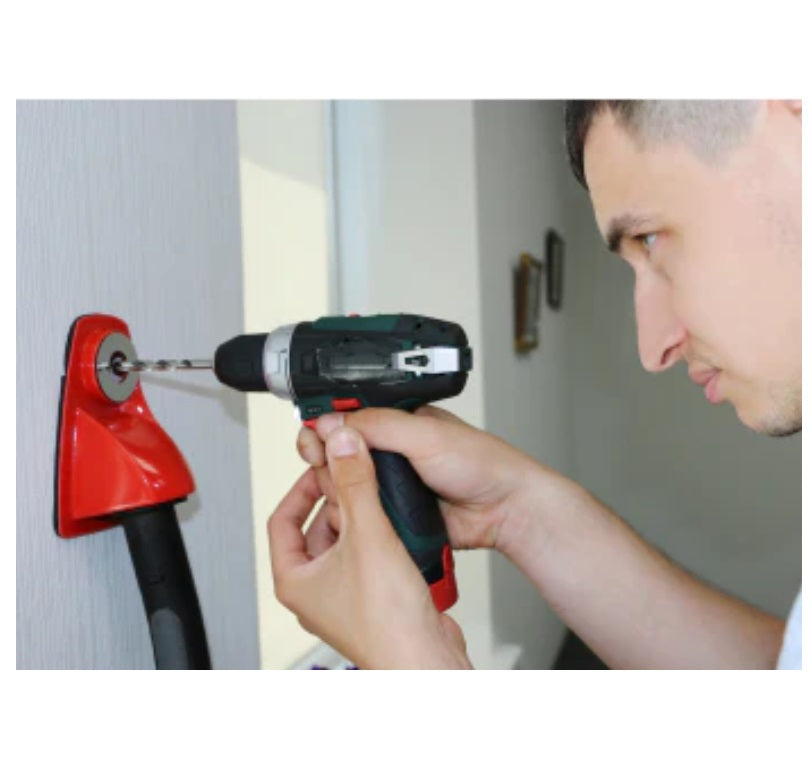

Turn on the vacuum clenaer and put the device to the processing surface. Make sure that the centre of the device and the centre of the future hole match together.

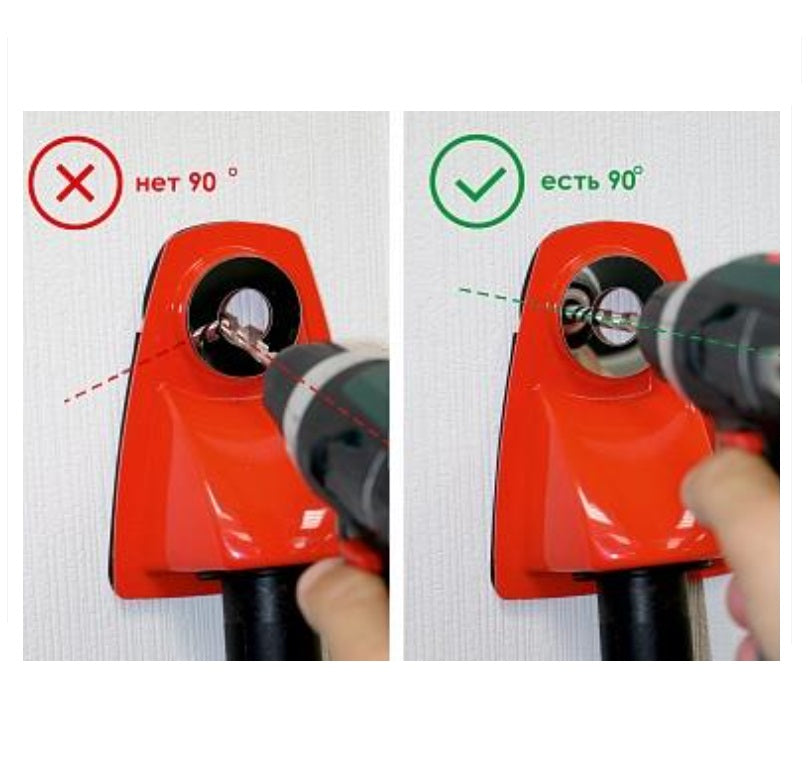

Guiding by the mirror ring place the drill vertical to the drilling surface (the axis of the drill and the axis of the mirrored drill shall match together.)

After work hold the device while turning off the vacuum cleaner.

Safety requirements,

Follow the common safety requirements during work when using handheld equipment. Ensure you use correct PPE also.

Advantages of using the HomeDUSTER Dust Shroud cover for drilling,

• Effective removal of dust and large particles
• Light weight, only 60 grams
• Durable plastic
• Mirror guide, precise drilling under 90 degrees
• Wide range of drilling diameter up to 20 mm
