Regular price $16,225.00 + GST
Regular price Sale price $16,225.00 + GST
Sale Contact Us
Shipping calculated at checkout.

SKU:GEN-23kva

  • Order by 2pm for Same Day Dispatch

Specifications

Frequency 50HZ

Voltage 240V / 415V

Max output 18500W/ 23kVA

Rated output 18,000W

Sockets Provided 2 X 15A SINGLE PHASE and 32A 3-PHASE SOCKETS WITH RCBO PROTECTION DRY

Weight 240kg

Noise level (7m)50% LOAD - 80dB

Rated power factor 0.8

Engine type Twin cylinder Air Cooled Petrol

Engine model Vanguard EFI 37hp

Starting system Key Start

Engine Fuel economy 5.6 L/h @ 50% LOAD

Fuel tank 30.3 L

Dimensions 1105mm(43.5in) (L) x 632mm(24.8in) (W) x 1024mm(40.3in) (H)

View full details

Product Information

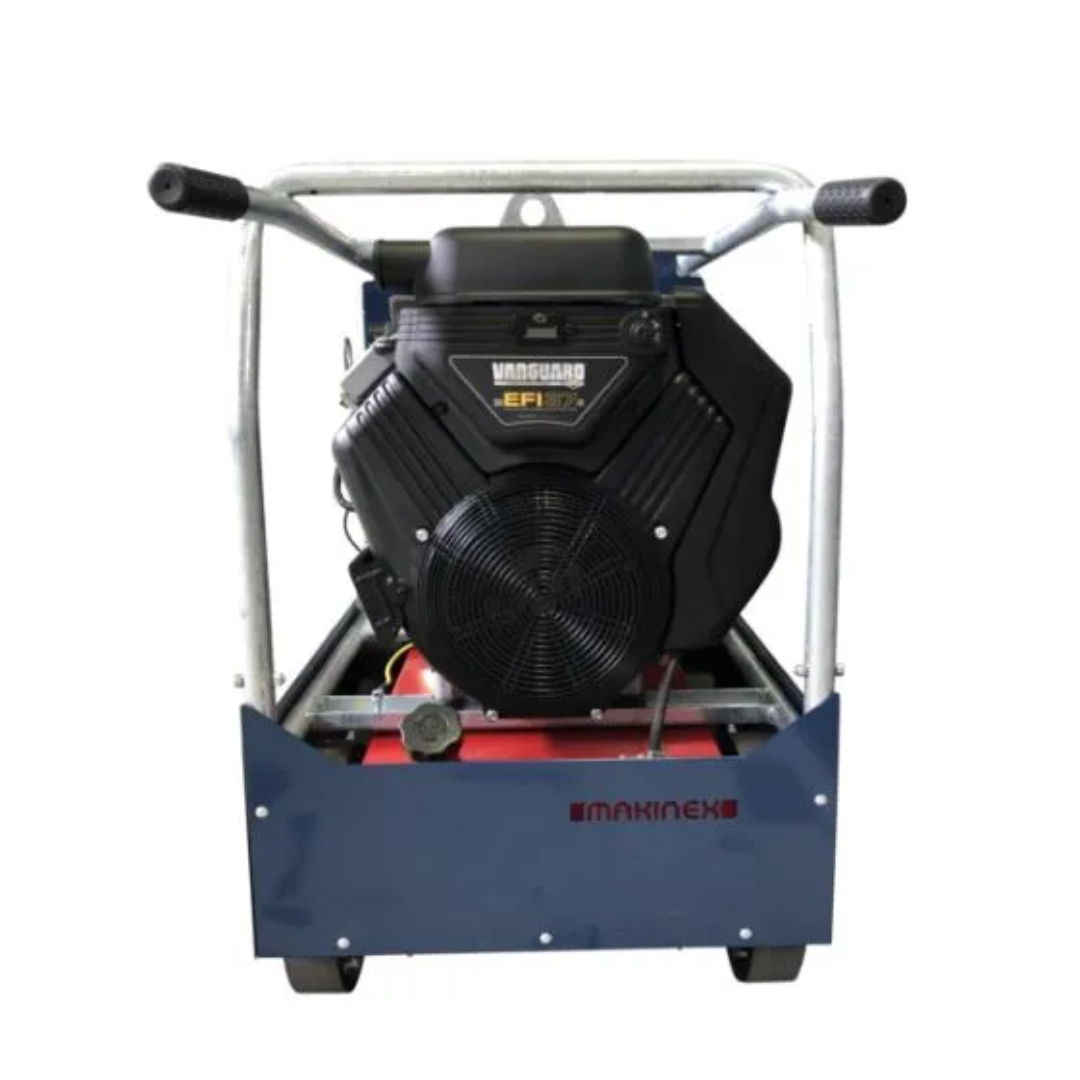

Compact and powerful 23KVA 415V single/three-phase generator

Avoid the hassle and expense of oversized SKID and towable generators. With the world's smallest dual phase 23 KVA generator, you can put 19KW of 3-phase 415V power exactly where you need it

Less than one third the size and weight of comparable towable and SKID generators, the 23KVA is the world’s smallest 3-phase 415V generator in its class. This is a game-changer for power-hungry contractors and tradesmen in the concrete, masonry and flooring industry.

Avoid all the hassle of a cumbersome heavy-duty generator parked at the curb. The 23KVA 415V is so small it fits in your equipment trailer or truck, and gets through standard doorways. So, you can put it right where it is needed, and eliminate the hazard and power loss of long cables.

The 23KVA uses permanent-magnet brushless alternator technology. This guarantees clean 415V three phase power and robust power supply.

These advanced alternator features yield 15% more power from the same engine, than is possible with conventional copper wound alternators, while requiring fewer electronic components. This makes for less wear and tear and a longer lifespan.

Equipped with industry standard 32A 3 phase  and 15A single phase outlets, the 23KVA 415V can power multiple pieces of single phase and 415V three phase equipment at the same time with no requirement for voltage selection. Just plug equipment into the right outlet and power it up!

Powered by the Briggs & Stratton VANGUARD™ 61G277 Twin Cylinder Air cooled petrol engine with electronic governor, you can be sure of great fuel economy, low emissions and a perfectly balanced engine with low vibrations.

Top reasons for choosing Makinex generators
  • All Makinex products are designed and built to endure the rigors of inductive and high frequency application markets.
  • Advanced alternator tech saves 15% fuel versus similar generators using the same engine whilst maintaining less than 3% harmonic distortion of sinewave.
  • Designed for maximum convenience and ease for concrete, masonry and flooring pros

2020 Most Innovative Product at World of Concrete (General Construction Tools & Equipment)

Solution Benefits

  • Durable Galvanized frame
  • Multi cushion isolators for vibration reduction
  • Compact design for easy storage and transport
  • Lifting point for transportation RFL permanent magnet alternator
  • Electronic Fuel Injection Electronic Governor
  • Having power near to where I am working
  • Combining 3 phase and single phase outlets
  • Portable and maneuverable
  • Tight access
  • Adjustable power flow
  • Most compact portable generator on market
  • 15% more power from the same engines
  • Easy to position near working area
  • Suitable for inductive & high frequency loads





CHALLENGES ON THE JOB

  • Curb site power is inconvienient and expensive.
  • 5% loss in voltage for every metre of cables.
  • Getting clean 415V or three phase power close to the work area.
  • Towing a generator to the site or having it delivered on hire

SOLUTIONS & BENEFITS THE MAKINEX GENERATOR PROVIDES ARE WORTH THE INVESTMENT.

    • Light and Small enough to carry on your truck
    • Independant Single and 3-phase 415V power generation
    • Powers 240V and 415V equipment at the same time
    • Simultaneous single and three phase operation
    • Highly portable, thanks to large transport wheels
    • Comes with 3-year warranty
    • Reliable Honda engine - Compatible with 95 Premium Unleaded Petrol

CONTACT ALL PREPARATION EQUIPMENT

Portable power is a must onsite to ensure you can work anywhere, any time. When running a generator, it’s important you have the right sized power lead to ensure you have consistent power to your concrete grinder, floor lifter or other equipment relying on it.
