Voltage - 400 V

Frequency - 50 Hz

Power output - 15 kW

Working width - 800 mm

No. of tools - 3 x 270 mm

Grinding pressure, max. - 240/300/200 kg

Operating weight - 510 kg

Edge distance - 10 mm

Tool speed - 400 - 1200 r.p.m.

Tank - 26 l

Ø-Dust control - 70 mm

Tool mount - ETX1, ETX2, Velcro

Download Manual View full details

Product Information

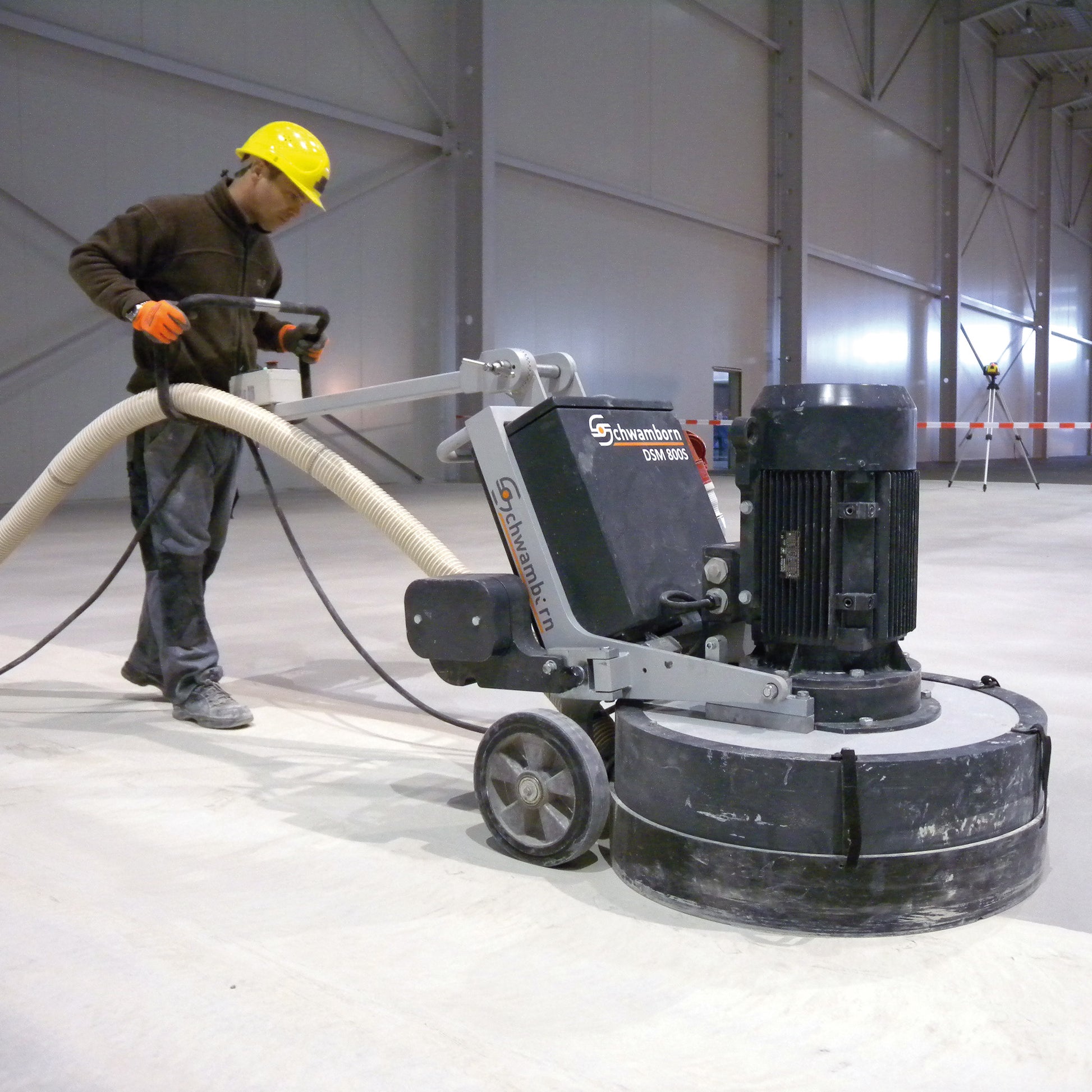

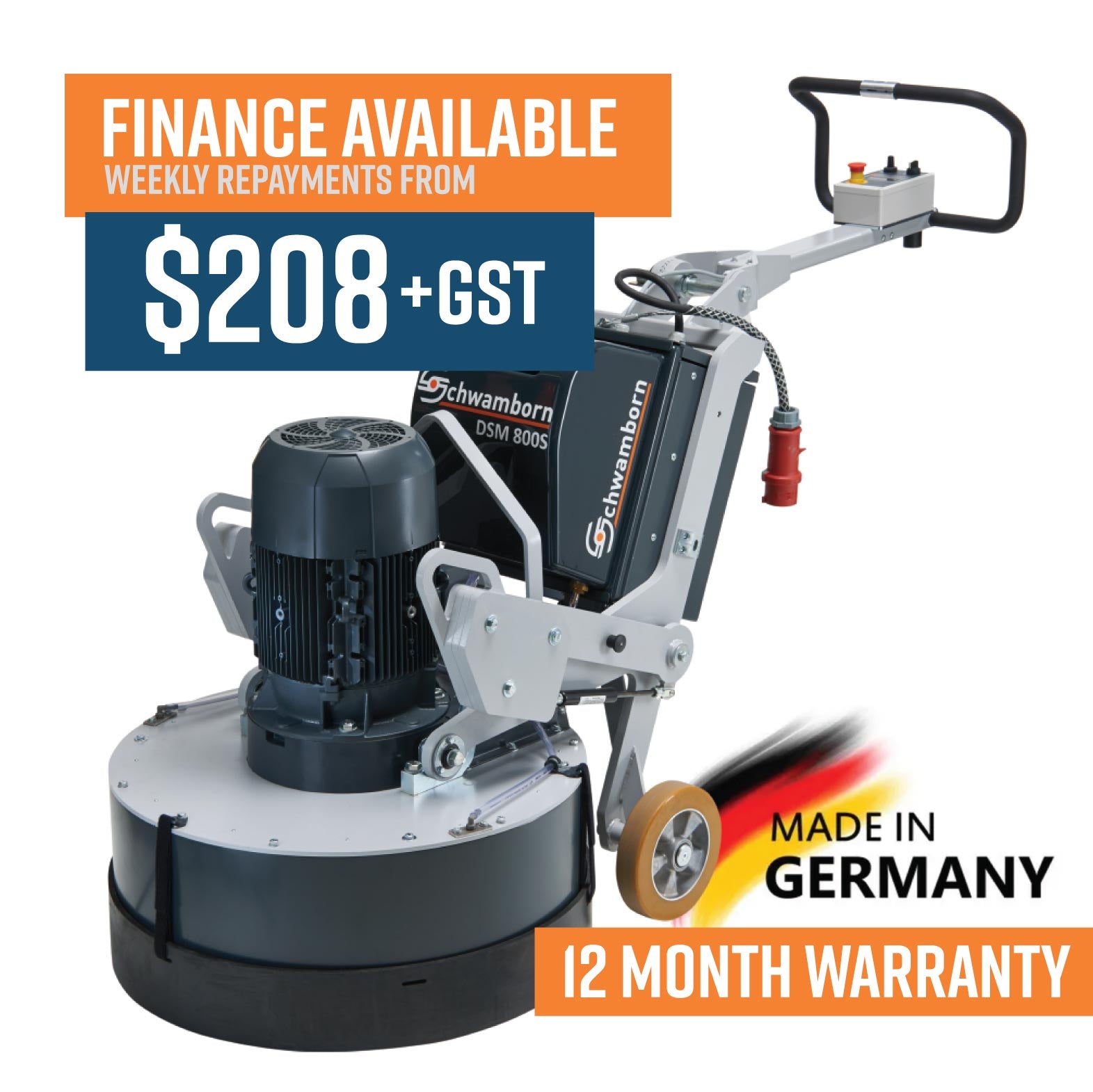

Schwamborn DSM800s Planetary Concrete Floor Grinder

The DSM800S Concrete Floor Grinder is powered by Schwamborn Grinding technology. This innovative, high-performance machine makes for efficient, professional grinding in large sqm floor areas.

Grinding and polishing of floors, subsurface preparation, and removal of coatings Everything has been thought of. The DSM 800S is a well-thought-out Schwamborn System design. Ergonomics, efficiency, innovation, and over 8 years of experience have all been invested in the most user-friendly machine in the company's history.

  • Display with power indicator = optimum diamond selection and grinding performance
  • High-performance load gearbox = maximum power transmission for high grinding performance
  • Automatic tool adaptation (DIF) = improved grinding results on uneven floors
  • Anti-shock transmission mounting (ASD) = reduced machine vibration
  • ETX-2 diamond carrier = easy tool exchanging for all Schwamborn diamonds
  • Special transport wheels = streak-free working on delicate flooring
  • Individually adjustable grinding pressure = improved grinding results
  • 180° turning manoeuvres with grinder overlapping = uniform grinding result


German-built, engineered and manufactured, Schwamborn Concrete Floor Grinders offer extremely high production, made possible due to their combination of weight, motor power, and diamond grinding pressure. Combined with the correct diamond tooling, our Schwamborn machines offer productive, high-performance efficiency when on site. These machines are powerful, easy to maneuver, and have the flexibility to perfect your floor with a superior polished finish, or to simply remove humps, glues, paints, trip hazards & epoxies. Built to a standard professional contractors demand and expect, this German-built machine boasts the highest quality of workmanship and is proud to be rental tough™.

Over 80 years of engineering experience stands behind the design of every Schwamborn machine. Designed for excellence in floor preparation, polishing and removal,


  • DOC or Drive Overload Clutch - Protects the drive against shock loads when starting or driving over obstacles, in turn extending the surface life of your new machine.
  • ETX or Easy Tool Exchange - Time is money! This simple knock-on diamond shoe system is designed for easy and quick tooling exchange.
  • DIF or Diamond Floating Device - Nothing is worse than an uneven surface when you are looking for a perfect floor finish. Because every floor surface is different, our DIF system ensures uniform grinding results and reduces the machine's vibration at the same time.
  • MOP or Motor Overload Protection - Improved electrical safety gives outstanding reliability for our Schwamborn machines when working under heavy working conditions.

In Australia, the DSM250 Schwamborn grinders are leading the industry, while boasting ECONOMY, SAFETY, EASE OF USE, and INNOVATION.


Wanting to discuss your concrete floor preparation and grinding projects? Call the team at All Preparation Equipment on 1800 422 992 to discuss your project requirements further.
